Automatic Entity Encryption in Mendix Using Generalization

Introduction

This article demonstrates how to build an automatic encryption system using Mendix generalization that encrypts entities before storage and decrypts them on demand without modifying individual entity logic.

Traditional attribute-level encryption in Mendix requires the following:

• Manual encryption/decryption logic for each entity

• Repetitive code across multiple entities

• Difficult maintenance when encryption standards change

• Risk of forgetting to encrypt sensitive fields

Here we create an AutoCrypt module that provides the following:

• Automatic encryption on entity commit via before-commit event handlers

• On-demand decryption when viewing or editing data

• Dynamic serialization and deserialization of entity attributes

• Support for any entity through generalization

• Association-aware encryption that follows object graphs

• Zero-configuration encryption for new entities

The system uses Mendix generalization to create a base entity with encryption capabilities. Entities generalized from this base type automatically gains encryption.

Original article here.

Implementation

Create a new module named AutoCrypt to contain all encryption logic.

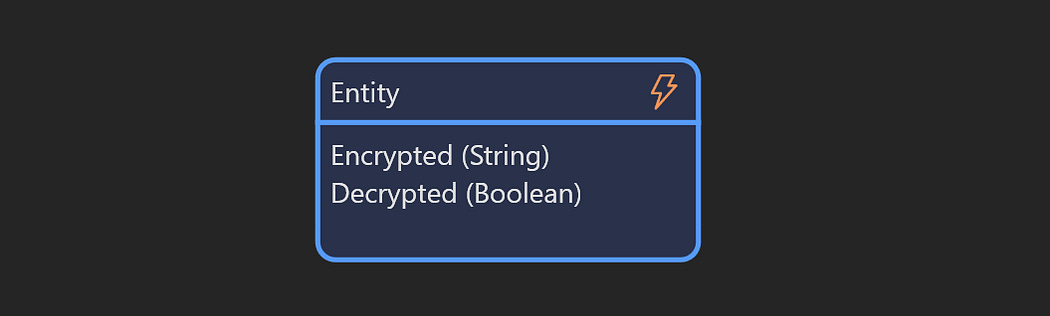

Base Entity

Create entity AutoCrypt.Entity with the following attributes:

• Encrypted (String) - Stores the encrypted JSON representation

• Decrypted (Boolean) - Indicates whether the entity is currently decrypted

All entities requiring encryption should generalize from this entity.

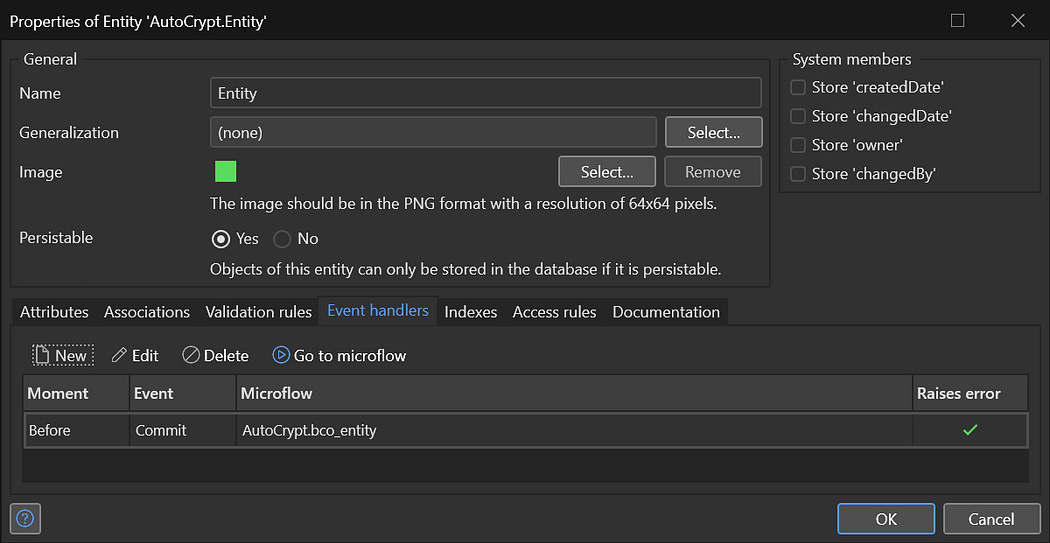

On the AutoCrypt.Entity, configure a before commit event handler as follows:

Configuring Event Handlers

This ensures encryption happens automatically whenever any specialized entity is saved.

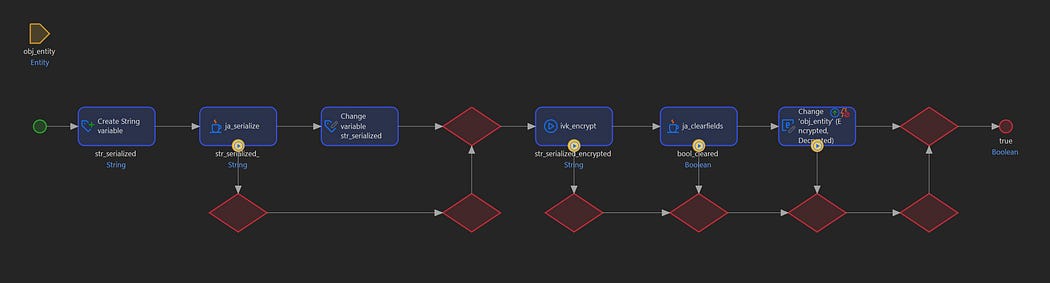

The Encryption Microflow

Next create the before commit microflow AutoCrypt.BCO_Entity:

Before Commit Microflow

Here we take a parameter obj_Entity (AutoCrypt.Entity) which will be the object to encrypt.

The logic works as follows:

1. Check if $obj_Entity/Decrypted = true

• If true, entity is in plaintext and needs encryption

• If false, already encrypted, skip processing

1. Serialize the entity to JSON dynamically using the serialization Java Action

2. Encrypt the JSON string using encryption Java Action

3. Clear all entity fields except Encrypted and Decrypted.This is done dynamically using a Java Action using reflection.

4. Set $obj_Entity/Encrypted to the encrypted string

5. Set $obj_Entity/Decrypted to false

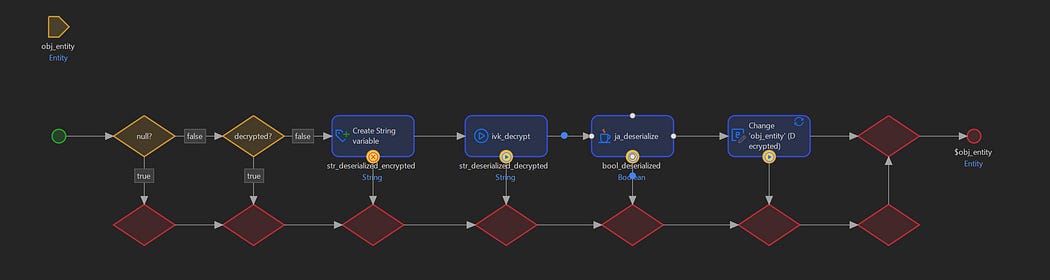

Decryption Microflow

For decryption we create microflow AutoCrypt.IVK_Entity_Decrypt:

Decryption Microflow

The parameterobj_Entity (AutoCrypt.Entity) is the object to be decrypted. The logic works as follows:

1. Get the encrypted data from $obj_Entity/Encrypted

2. Decrypt the string to get JSON

3. Deserialize JSON back into the entity object dynamically using a Java Action

4. Set $obj_Entity/Decrypted to true

5. Return the decrypted entity

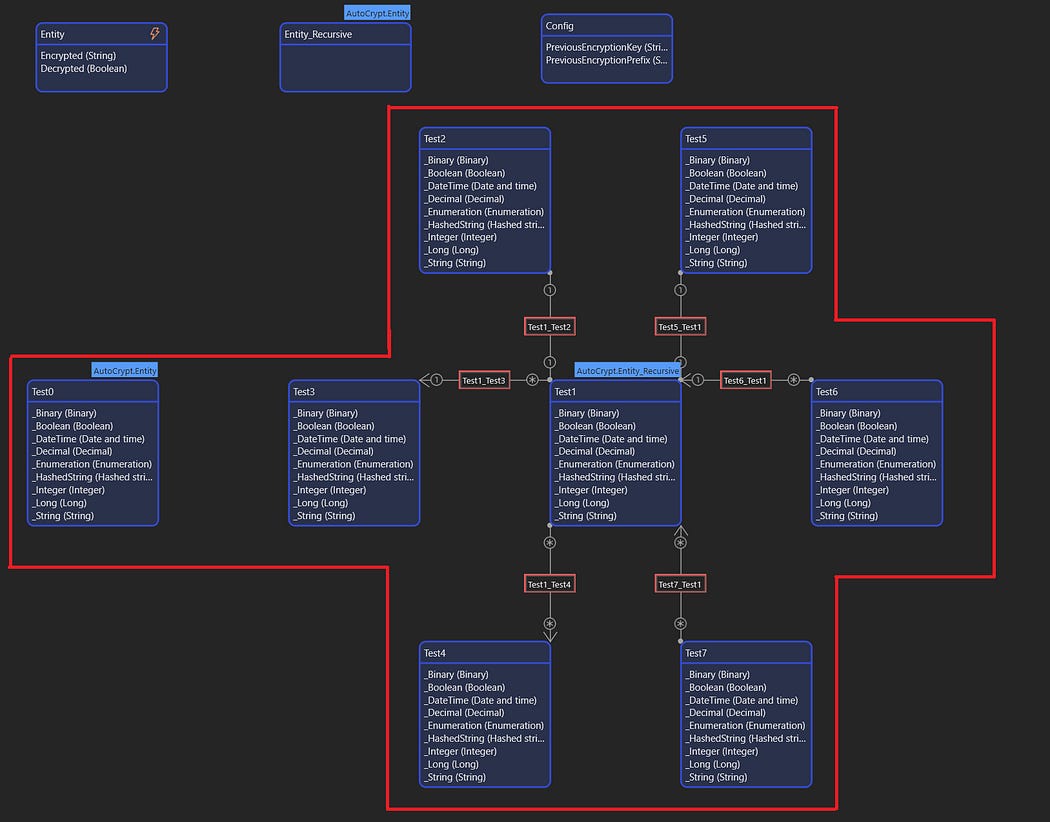

Specialized Entities

Next you can create generalizations of AutoCrypt.Entity. With the serialization and deserialization Java Actions correctly implemented you should be able to handle various field and association types:

Testing Generalizations

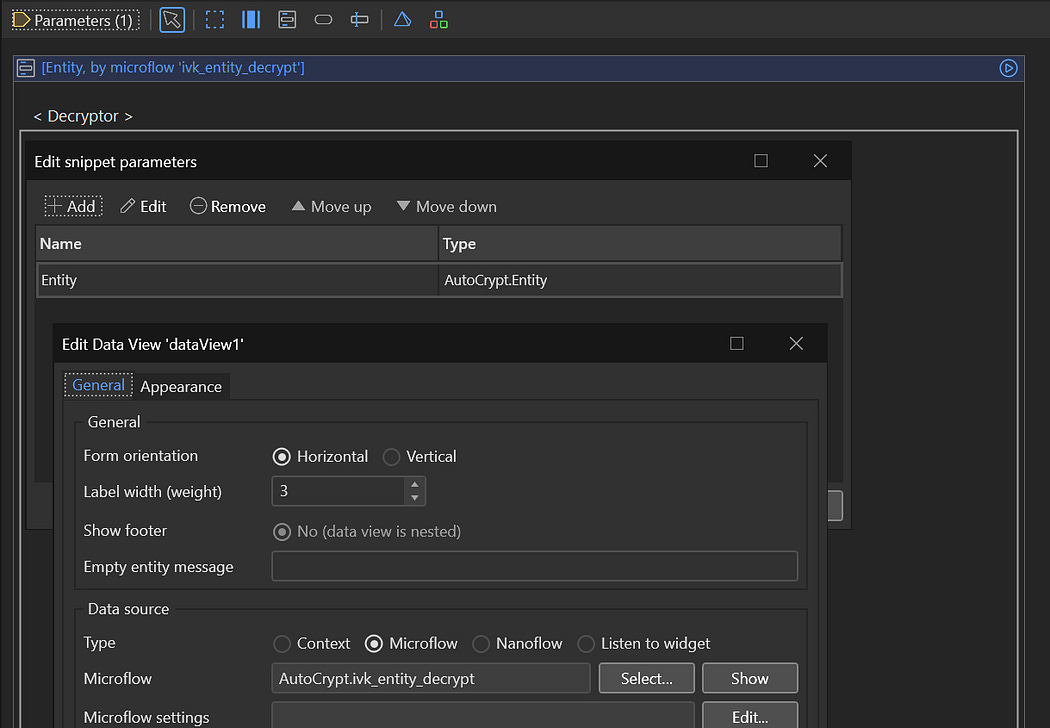

Create Decryption Snippet

Decryption Snippet

Create a reusable snippet AutoCrypt.SNP_Decrypt:

This snippet takes a parameter Entity (AutoCrypt.Entity) and calls the decryption microflow. Simply adding it to a dataview will invoke the microflow and decrypt the fields.

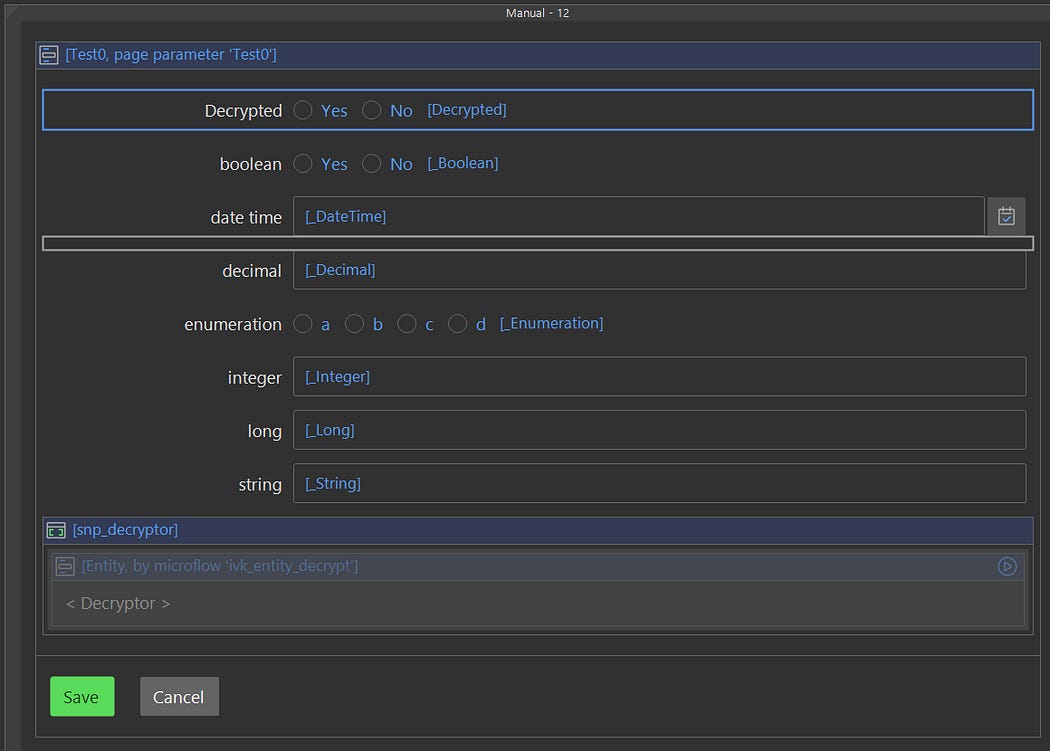

Using the Snippet

Clicking the Save button will automatically encrypt the entity.

End Result

To utilize the automatic encryption, all you have to do is the following:

1. Derive an entity from the AutoCrypt.Entity

2. Create an overview page for the new entity

3. Create an edit page for the new entity

4. Place the decryption snippet in the main Data View of the editing page

That is all that is required. Automatic encryption and decryption should work in the background.
